Every nested VCF lab starts the same way: a heroic PowerShell script. Ours was esxihostdeploy.ps1: ovftool plus PowerCLI, with an interactive menu asking which environment, which ESX version, which role and how many hosts.

It worked. It also lived on one person’s machine, prompted for credentials, and knew nothing about anything that comes after the hosts exist. Heroic, then, but not much of a team player.

This post is about what it became: a set of VCF Automation catalog items where requesting one form produces a complete nested VCF 9.1 instance. That means ESXi hosts, bringup (vCenter, NSX, SDDC Manager), a vSphere Supervisor, VCF Automation, Operations and identity. The environment number is practically the only real input.

The shape of the factory

Three stages, each a catalog item, plus a wrapper that chains them:

Stage 1  Nested ESX Hosts        VM Apps template + vRO actions
         (the old script, reborn declaratively)
Stage 2  Deploy VCF 9.1 Instance vRO workflow driving the VCF Installer API
         (spec generated, validated, bringup started)
Day-N    Supervisor · NSX Edge · VCF Automation · Ops Logs/Networks/RTM ·
         Identity (AD)           one catalog item each
Wrapper  "Deploy VCF Stack"      one form, checkbox per component

The factory catalog: hosts, bringup, every day-N component, and the wrapper — ten tiles

The wrapper’s form has a checkbox per component. Ticking one reveals that component’s tab, with every field already filled in. One lab password feeds every credential. Tick everything, click request, and go and make a coffee. Possibly several.

Rule 1: derive everything from one number

Each lab environment is f0X, and everything scales from X by formula:

ElementPatternf03 example
Namesf0X-m01-*f03-m01-vc01.res.lab
Subnets10.(20+X).<sub>.0/2410.23.1.0/24 (mgmt)
VLANs2X0n2307 (edge TEP)

The bringup spec is hundreds of lines of JSON, which the VCF Installer wants and nobody wants to type. A vRO action generates it from a known-good reference spec plus X. Nobody edits a deployment spec by hand, which means nobody typo-breaks a bringup at 2am.

When the old script did this, the formulas lived in string concatenation. Now they live in one action, with the reference spec beside it.

The same philosophy carried into stage 1:

  • the script’s “next free esxNN index” scan became a vRO action bound to the request form;
  • its VLAN/IP arithmetic became template expressions;
  • its --prop:guestinfo.* flags became ovfProperties in the template.

Porting a script isn’t rewriting it. It’s finding the declarative home for each behaviour.

Rule 2: never wait for anything you can watch instead

One constraint shaped the whole design. A VCF Automation request gets about two hours before the platform gives up on it. Our runs died at exactly two hours with Delegating token is not service token, which is a roundabout way of saying “time’s up”.

The project’s request timeout also defaults to two hours, and its Provisioning tab can raise it. We never tried. A full VCF bringup takes longer than that, and it shouldn’t hold a request open for hours anyway. So the wrapper never waits:

  • Bringup is fire-and-forget. The workflow authenticates to the installer, validates the spec, starts the task, and hands back a watchTaskId. Re-attach any time to check on it.
  • Fleet deployments (VCF Automation, Ops for Logs/Networks, metrics) are server-side tasks. The items submit with waitForCompletion=false.
  • The supervisor item submits enablement and returns; vCenter carries on.
  • Only fast, deterministic steps (identity configuration, minutes) run to completion inside the request.

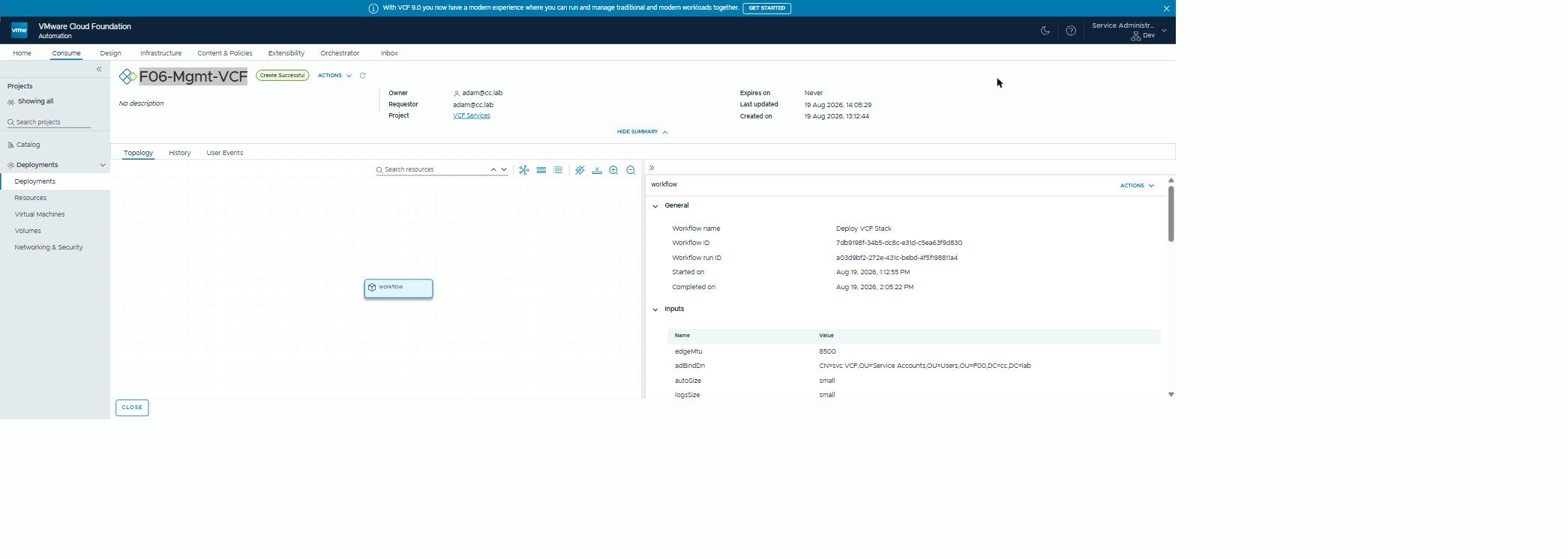

F06-Mgmt-VCF: the wrapper deployment, Create Successful, 13:12 → 14:05 A whole VCF instance as one deployment record. The request finished in under an hour, while the build ran on for twelve.

The result: a full-stack kick-off completes as a request in well under an hour (53 minutes on the run pictured). The actual multi-hour build carries on as server-side tasks you can watch. The request’s job isn’t to do the work. It’s to start the work correctly and tell you where to watch it.

The corollary: a failed component is recorded, and the remaining components still run. You fix one thing and re-run one item, not the world.

Rule 3: plan mode for infrastructure

Every item in the chain supports validateOnly, and the wrapper cascades it. Tick everything, set validateOnly, and the entire stack is planned against the live environment with zero changes. Specs are generated, prerequisites checked, and name and IP collisions caught. A smoke runner does exactly this on every change to the automation itself.

If you build nothing else into your lab automation, build this. The number of 2am bringups saved by a five-minute dry run is not small.

The traps that shaped the rules

Some of the design above exists because of scars:

  • Hardware validation hates virtual NVMe. Bringup’s hardware compatibility list (HCL) check will block nested hosts. The spec generator has to account for it, or you discover it two hours in. Twice, if you’re us.
  • Small disks, surprising layouts. Nested hosts with 64 GB disks ship ESX-OSDATA at essentially the whole disk. A post-provision step relocates scratch, or stage 2 fills the disk with logs.
  • DNS is a prerequisite, not a step. The installer’s pre-flight wants every record resolvable before it starts. A one-shot script creates the per-environment records ahead of the request.
  • vRO’s content-source lag. A new or changed workflow takes 15–20 minutes of data collection before the catalog sees it. Publish, wait, then test, or you’ll debug a ghost.
  • Wrapper inputs are duplicated by necessity. vRO requires every sub-workflow input to be passed explicitly, so adding an input to a component means updating the wrapper’s call too. Null-guards in each component turn a forgotten field into a loud failure instead of a silent default.

Why bother?

Because the payoff compounds. Once a full VCF instance is a catalog request, everything downstream changes character:

  • upgrade rehearsals happen on freshly built instances instead of precious pets;
  • a broken environment is redeployed, not repaired;
  • the lab stops being a collection of snowflakes and becomes a product: versioned, validated, reproducible.

Three pods, identical IP plans, no route between them Where this is heading: the factory’s output feeding per-student pods with identical addressing.

The factory’s next customers, funnily enough, are the isolated VPC pods from the other series on this blog. Same philosophy, one layer further down.

Why this matters outside the lab

A complete VCF instance from one form changes what an environment costs to have. Environments used to be precious, because building one took a week. Now they’re disposable, and a lot follows from that:

  • Proofs of concept run on an environment built for the customer’s scenario, not on whatever happens to be free.
  • Upgrade and migration rehearsals happen on a fresh instance of the right version, then it’s deleted.
  • Training and enablement get a real VCF per person or per team.
  • Reference builds exist for every supported release, on demand.

This is how Comms-care provides a dedicated instance to every consultant. The same factory, pointed at a customer’s requirements, is a repeatable way to deliver environments, rather than a one-off project each time.

Rules learned

  • Derive names, subnets and VLANs from a single environment number; generate specs, never hand-edit them.
  • Respect the request-duration ceiling: start long work, return a task handle, re-attach to watch. Never block a wrapper on an hours-long task.
  • validateOnly on every item, cascaded by the wrapper: dry-run the whole stack before touching anything.
  • Componentise failure: one broken step re-runs alone.
  • Pre-create DNS; expect HCL friction on virtual hardware; budget for vRO’s content-source lag.
